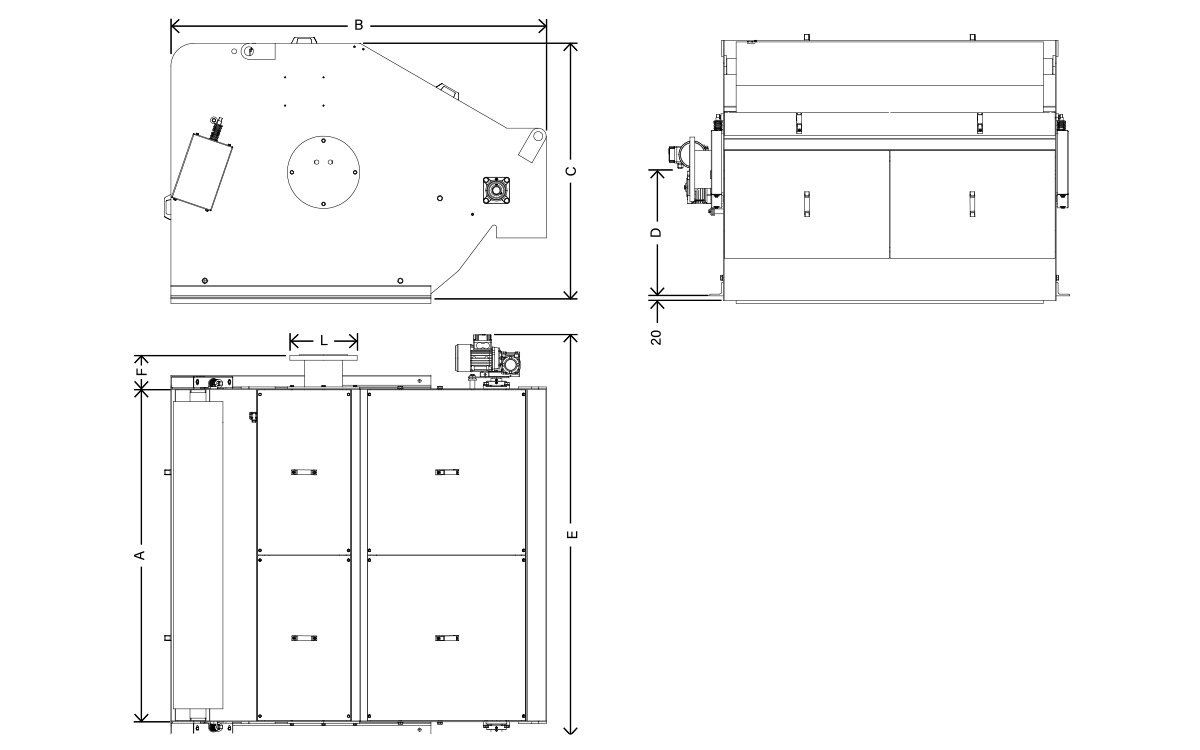

| Models | Dimensions (mm) | Weight (kg) | ||||||
| A | B | C | D | E | F | L | ||
| Master AB 700 | 773 | 1660 | 1130 | 560 | 1020 | 185 | DN150 PN16 | 1200 |
| Master AB 1000 | 1073 | 1660 | 1130 | 560 | 1020 | 185 | DN150 PN16 | 1500 |
| Master AB 1400 | 1473 | 1660 | 1130 | 560 | 1020 | 185 | DN150 PN16 | 1800 |
| Master AB 2000 | 2093 | 1660 | 1130 | 560 | 1020 | 185 | DN150 PN16 | 2100 |
| Models | Flow rate l/min * | |||
| Roughing grinding (emulsion) | Finishing grinding (oil) | Drawing (emulsion) | Washing machines, chip removal machines (emulsion) | |
| Master AB 700 | 400 | 200 | from 400 to 800 | 800 |
| Master AB 1000 | 600 | 300 | from 800 to 1200 | 1200 |
| Master AB 1400 | 800 | 400 | from 1200 to 1600 | 1600 |
| Master AB 2000 | 1200 | 600 | from 1600 to 2000 | 2000 |
* Nominal flow rate data refers to emulsion with a maximum oil concentration of 5% or neat oil with a maximum viscosity of 20cst at 40°C, and with a filter cloth weighing no more than 35g/m2. The different characteristics of the liquid to be treated, the type of pollutant and its concentration can considerably affect the performance of the purifier. Our technical department is at your disposal to identify the most suitable solution for your needs.
