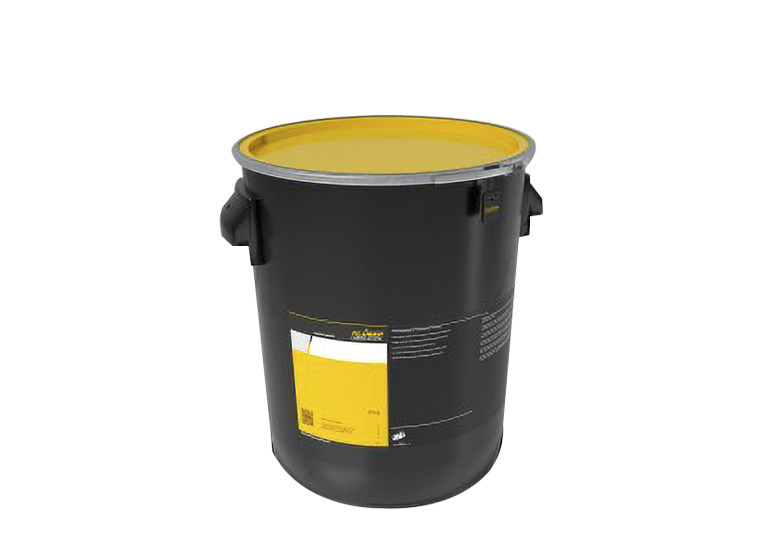

    klubersynth ag 14-61

    Klübersynth AG 14-61 has been especially designed for girth gear/pinion drives and plain bearings in wind turbines. The lubricant is resistant to high loads and provides very good corrosion protection properties. It can be used in a wide service temperature range and is therefore pumpable at temperatures as low as minus 30 °C. The grease offers good pressure and wear resistance and is free from inorganic solid lubricants like MoS2 and graphite. Due to its good compatibility with commercial sealing materials Klübersynth AG 14-61 is suitable for wide ranging applications

    • Klübersynth AG 14-61 has been designed for girth gear/pinion drives and plain bearings in wind turbines. The lubricant is also suitable for low-speed rolling bearings, plain bearings, sliding and guide rails.
    • Klübersynth AG 14-61 can be applied by means of brush, spatula, grease gun, grease metering gun, automatic low-quantity or standard metering systems, grease cartridge, and centralised lubrication systems. We recommend conducting a metering test in the original dosing device under practical operating conditions.
    • Good pumpability and metering via centralised lubrication systems also at low temperatures
    • High corrosion protection also when exposed to salt water
    • Longer service life of girth gear/pinion drives due to good wear protection characteristics even under vibration conditions
    • No contamination of machine environment due to use of white solid lubricants
    • Low consumption due to excellent adhesion even at low temperatures
    Characteristics Klübersynth AG 14-61
    Article number 017184
    Composition solid lubricant
    Composition, thickener aluminium complex soap
    Composition, type of oil synthetic hydrocarbon oil
    Solid lubricants approx. 20 % by weight
    Colour space white
    Texture homogeneous
    Service temperature, lower limit -50 °C
    Service temperature, upper limit 120 °C
    Worked penetration, DIN ISO 2137 / ASTM D217, 25°C, lower limit 330 0.1 mm
    Worked penetration, DIN ISO 2137 / ASTM D217, 25°C, upper limit 360 0.1 mm
    Kinematic viscosity of the base oil, DIN EN ISO 3104 / DIN 51562-1 / ASTM D445 / ASTM D7042, 40°C approx. 65 mm²/s
    Flow pressure, DIN 51805-2, -50°C ≤ 1400 mbar
    Dropping point, DIN ISO 2176 / IP 396 ≥ 170 °C
    FZG scuffing test, DIN ISO 14635-3, based on standard, A / 2.8 / room temperature, failure load stage ≥ 12
    Water resistance, DIN 51807-1, 3 h, 90°C 0 - 90 rating
    Minimum shelf life from the date of manufacture - in a dry, frost-free place and in the unopened original container, approx. 24 months



    klubersynth-ag-14-61.pdf
